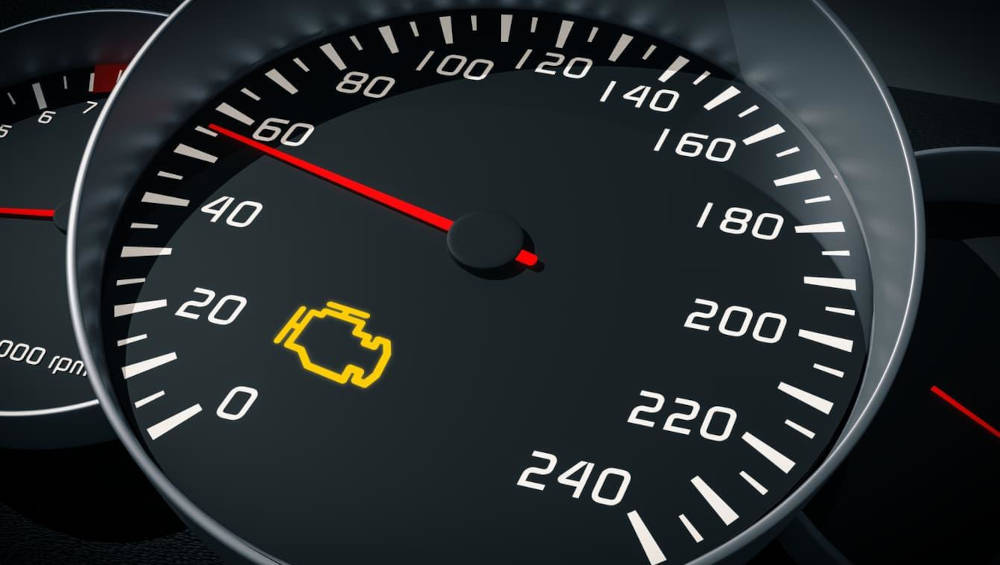

Engine Light on a Dashboard

Hyundai OBD-II Trouble Codes

Hyundai vehicles use an advanced OBD-II system to monitor performance parameters. When issues arise, it logs diagnostic trouble codes (DTCs) accessible with an OBD-II scanner. These Hyundai check engine light codes help identify and address faults, ensuring optimal engine performance and efficiency.

What are Hyundai Check Engine Light Codes?

Hyundai OBD-II trouble codes monitor systems and components for errors. When a fault is detected, a specific code triggers the check engine light. These codes pinpoint issues, enabling effective diagnostics and repairs.

Hyundai OBD-II Trouble Codes

Use this list of Hyundai check engine light codes to quickly troubleshoot issues.

OBD-II    CodeDescription
B1346Driver's front airbag high resistance, possibly due to airbag, wiring harness, or electrical connections issues, including the clockspring.
C12001Engine control module issue related to the brake booster; symptoms include check engine light, reduced power, and decreased fuel efficiency.
C160449Front camera system issue affecting Forward Collision Avoidance Assist feature, indicating an internal control chip problem.
P0011"A" Camshaft Position - Timing Over-Advanced (Bank 1), possibly due to a faulty camshaft position actuator or dirty oil.
P0012"A" Camshaft Position - Timing Over-Retarded (Bank 1), potentially caused by camshaft position actuator or incorrect engine timing.
P0013"B" Camshaft Position - Open or Short in Oil Control Valve (OCV), indicating electrical issues in the actuator circuit.
P0014"B" Camshaft Position - Timing Over-Advanced (Bank 1), indicating camshaft is too advanced compared to ECM expectations.
P0101Mass Air Flow (MAF) Sensor Circuit Range/Performance Problem, indicating issues with the amount of air entering the engine.
P0102Mass Air Flow (MAF) Sensor Circuit Low Input, triggered by low readings from the MAF sensor, possibly due to a dirty sensor or air leak.
P0113Intake Air Temperature Sensor 1 Circuit High, indicating excessively hot intake air detected by the PCM.
P0128Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature), likely due to a faulty thermostat.
P0135Oxygen O2 Sensor Heater Circuit Malfunction (Bank 1, Sensor 1), indicating an issue with the O2 sensor's heating element.
P0171System Too Lean (Bank 1), suggesting a vacuum leak or faulty MAF sensor.
P0174System Too Lean (Bank 2), similar to P0171 but affecting the second bank of the engine.
P0200Injector Circuit Malfunction, indicating a problem with the fuel injector circuit's operation.
P0201Injector Circuit Malfunction - Cylinder 1, indicating a fault in the injector or wiring for cylinder 1.
P00320Malfunction in the Ignition/Distributor Engine Speed Input Circuit, often due to issues with the crankshaft position sensor or wiring.
P0300Random or multiple cylinder misfires, potentially caused by worn spark plugs, ignition problems, vacuum leaks, or fuel delivery issues.
P0301Cylinder 1 Misfire Detected, caused by faulty spark plugs, ignition problems, or inadequate fuel pressure.
P0301-304Misfires detected in cylinders 1, 2, 3, and 4, typically due to faulty spark plugs, ignition coil problems, or inadequate fuel delivery.
P0420Catalyst System Efficiency Below Threshold (Bank 1), indicating potential catalytic converter issues.
P0442Evaporative Emission Control System Leak Detected (small leak), indicating a small leak in the EVAP system.
P0449Evaporative Emission Control System Vent Valve/Solenoid Circuit Malfunction, affecting the EVAP system's vent valve or solenoid.
P0456EVAP System Small Leak Detected, similar to P0442 but indicating a very small leak.
P0463Fuel Level Sensor Circuit High Input, indicating an issue with the fuel level sensor's signal.
P1100Issue with the Mass Air Flow (MAF) sensor signal being outside the manufacturer calibrated limits.
P1101Generally relates to MAF sensor performance.
P1102MAP sensor delivering a voltage lower than expected, affecting engine performance and fuel efficiency.
P1103Mass Air Flow Sensor In Range But Higher Than Expected, suggesting the MAF sensor's output is higher than expected.
P1104Mass Air Flow Sensor Out of Self-Test Range, meaning the MAF sensor readings are outside the expected range during self-test.
P1105Manifold Absolute Pressure (MAP) Sensor Malfunction, typically due to sensor or circuitry issues.
P1106MAP Sensor Circuit Intermittent High Voltage, indicating an intermittent high voltage signal from the MAP sensor.
P1107MAP Sensor Circuit Low Voltage, meaning the MAP sensor is delivering a lower than expected voltage signal.
P1108MAP Sensor Circuit High Voltage, meaning the MAP sensor is sending a higher than expected voltage signal.
P1326Issue with the Knock Sensor Detection System (KSDS), potentially triggering a "limp home" mode to prevent engine damage.
P1327Knock Sensor 2 (Bank 1) Low Input, indicating a low input signal from the second knock sensor on Bank 1.
P2181Cooling System Performance, indicating the engine's cooling system is not operating within the proper temperature range.

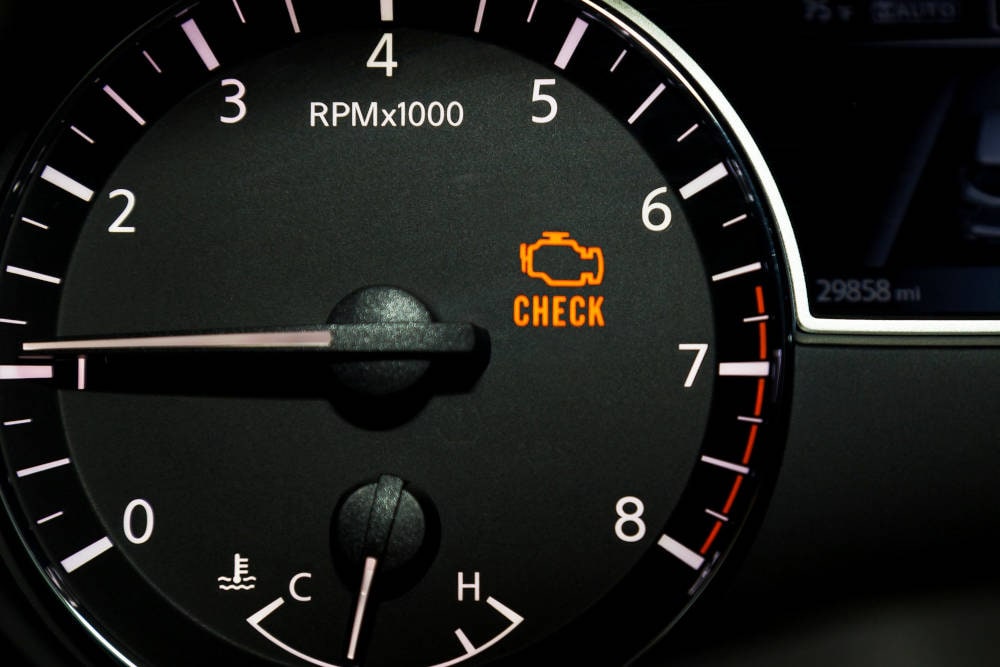

Engine Light on a Dashboard
How to Read Hyundai Check Engine Light Codes

Reading Hyundai check engine light codes is a straightforward process. Here's how to do it:

  1.     Use an OBD-II scanner: Connect it to the OBD-II port under the dashboard and turn on the vehicle.
  2.     Retrieve the codes: Follow scanner prompts to read the trouble codes.
  3.     Interpret the codes: Refer to Hyundai's code list or an online database to understand the issues.

Fixing Trouble Codes

When your check engine light appears, it can be concerning. Our service technicians specialize in diagnosing and fixing Hyundai check engine light codes promptly and accurately. Our process is straightforward:

  1.     Diagnose the issue: Use the trouble code as a guide.
  2.     Inspect and repair: Check sensors, wiring, or mechanical components and repair or replace faulty parts.
  3.     Clear the codes: Use the OBD-II scanner and test drive the vehicle to confirm the repair.

How to Prevent a Hyundai Check Engine Light

  1.     Regular maintenance: Follow Hyundai's service schedule.
  2.     Timely repairs: Address minor issues promptly.
  3.     Use quality parts: Opt for OEM Hyundai parts.

Common Causes of a Check Engine Light

The check engine light is a crucial warning indicator that signals issues within the engine or related systems. Here are some common causes:

  • Loose or Damaged Gas Cap: A loose or damaged gas cap can cause fuel vapor leaks, reducing fuel efficiency and triggering the check engine light.
  • Oxygen Sensor Malfunction: A faulty oxygen sensor can disrupt the air-fuel mixture, leading to decreased engine performance and increased emissions.
  • Catalytic Converter Issues: Problems with the catalytic converter can reduce emission efficiency and cause poor vehicle performance.
  • Mass Airflow Sensor Failure: A failing mass airflow sensor disrupts air and fuel delivery, affecting engine efficiency and performance.
  • Spark Plug or Ignition Coil Problems: Worn spark plugs or faulty ignition coils can cause misfires, leading to rough engine performance and triggering the check engine light.
